The Pitcher Apps Managed Package creates a foundational layer for the apps Pitcher builds on Salesforce. It includes base services and objects that are shared across other PCH packages.
This document describes the contents and configuration of the latest Pitcher Apps Managed Package.
The Allocation (PCH__Allocation__c) object determines how certain template records related to Tags, Missions, Promotions, Assortments, etc., are allocated to Accounts/Users.
Fields and Relationship
Field Label
Field Name
Data Type
Allocation ID
Name
Auto Number
Created By
CreatedById
Lookup(User)
Last Modified By
LastModifiedById
Lookup(User)
Owner
OwnerId
Lookup(User,Group)
Record Type
RecordTypeId
Picklist
Account
PCH__Account__c
Lookup(Account)
Attribute
PCH__Attribute__c
Text(255)
External ID
PCH__External_ID__c
Text(255) (External ID) (Unique Case Sensitive)
Inheritance
PCH__Inheritance__c
Checkbox
Rule
PCH__Rule__c
Text(255)
Site (Template)
PCH__Site_Template__c
Lookup(Site)
Tag
PCH__Tag__c
Lookup(Tag)
Tag (Template)
PCH__Tag_Template__c
Lookup(Tag)
Type
PCH__Type__c
Picklist
User
PCH__User__c
Lookup(User)
Resources
Component Name
Component Type
Tag Allocation
Record Type
Site Allocation
Record Type
Allocation Layout
Page Layout
All
List View
Tag Object
The Tag (PCH__Tag__c) object provides an easy way to either define segments (groups) of Accounts/Users or to allow Operations Users to create pick lists.
Fields and Relationship
Field Label
Field Name
Data Type
Tag Name
Name
Text(80)
Created By
CreatedById
Lookup(User)
Owner
OwnerId
Lookup(User Group)
Record Type
RecordTypeId
Record Type
Last Modified By
LastModifiedById
Lookup(User)
Account
PCH__Account__c
Lookup(Account)
Allocation
PCH__Allocation__c
Picklist
Allocation Logic
PCH__Allocation_Logic__c
Picklist
External ID
PCH__External_ID__c
Text(255) (External ID) (Unique Case Sensitive)
Parent
PCH__Parent__c
Lookup(Destination)
Process ID
PCH__Process_ID__c
Text(255) (External ID)
Sequence
PCH__Sequence__c
Number(18,0)
Tag (Template)
PCH__Tag_Template__c
Lookup(Tag)
Technical Status
PCH__Technical_Status__c
Picklist
Template
PCH__Template__c
Checkbox
Type
PCH__Type__c
Picklist
Unique ID
PCH__Unique_ID__c
Text(255) (External ID) (Unique Case Insensitive)
User
PCH__User__c
Lookup(User)
Resources
Component Name
Component Type
Account Tag
Record Type
Tag
Record Type
Tag Group
Record Type
User Tag
Record Type
All
List View
Tag (Templates)
List View
User Tag Layout
Page Layout
Tag Group Layout
Page Layout
Account Tag Layout
Page Layout
Tag Layout
Page Layout
Deep Clone
Detail Page Button
Site Object
The Site (PCH__Site__c) object describes a physical location that allows other objects to relate to a site (physical address) instead of an account.
Fields and Relationship
Field Label
Field Name
Data Type
Site Name
Name
Text(80)
Created By
CreatedById
Lookup(User)
Last Modified By
LastModifiedById
Lookup(User)
Owner
OwnerId
Lookup(User,Group)
Allocation
PCH__Allocation__c
Picklist
Allocation Logic
PCH__Allocation_Logic__c
Picklist
External ID
PCH__External_ID__c
Text(255) (External ID) (Unique Case Sensitive)
Parent
PCH__Parent__c
Lookup(Site)
Template
PCH__Template__c
PCH__Template__c
Resources
Component Name
Component Type
Site Layout
Page Layout
Instance Sharing Object
The Instance Sharing (PCH__Instance_Sharing__c) object is used to connect to Amazon Web Services.
Fields and Relationship
Field Label
Field Name
Data Type
Instance Sharing ID
Name
Auto Number
Owner
OwnerId
Lookup(User,Group)
Created By
CreatedById
Lookup(User)
Last Modified By
LastModifiedById
Lookup(User)
Instance
PCH__Instance_Zero__c
Lookup(Instance)
Instance ID
PCH__Instance_ID_Zero__c
Formula (Number)
Instance Name
PCH__Instance_Name_Zero__c
Formula (Text)
Location Object
The Location (PCH__Location__c) object is used to define geographic address.
Fields and Relationship
Field Label
Field Name
Data Type
City
PCH__City__c
Text(255)
Country
PCH__Country__c
Text(255)
Description
PCH__Description__c
Long Text Area(32768)
Email
PCH__Email__c
Email
External ID
PCH__External_ID__c
Text(255) (External ID) (Unique Case Insensitive)
Phone Number
PCH__Phone_Number__c
Phone
Postal Code
PCH__Postal_Code__c
Text(255)
Sharing code
PCH__Sharing_code__c
Text(80)
State
PCH__State__c
Text(255)
Street
PCH__Street__c
Text(255)
Name
Name
Autonumber

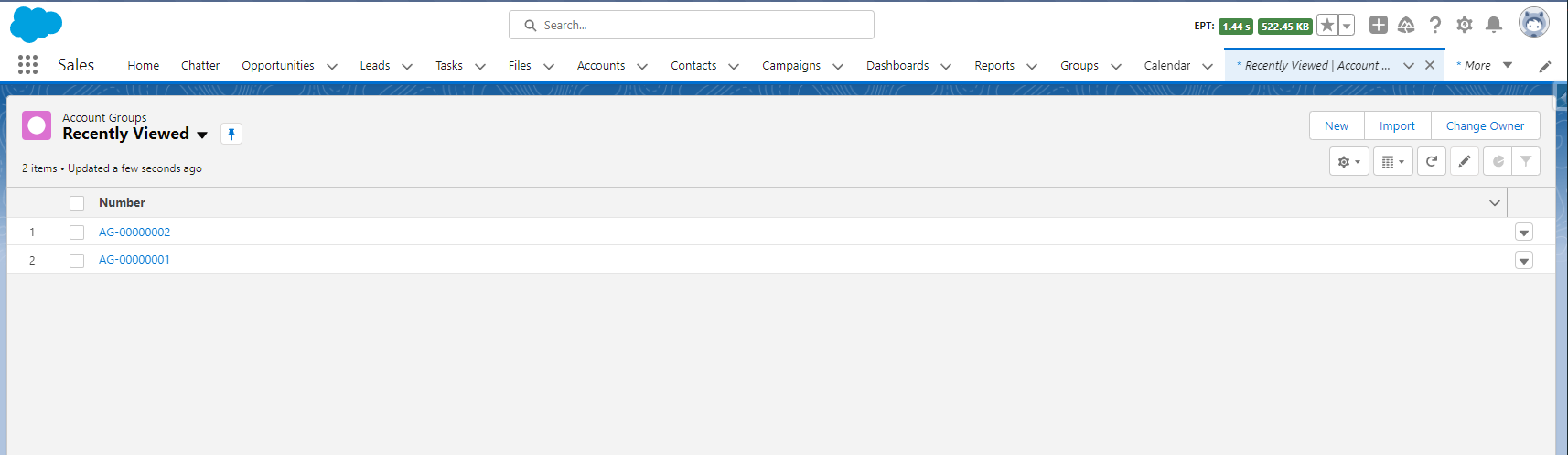

Account Group
The Account Group (PCH__Account_Group2__c) object is used to define groups of accounts.
Fields and Relationship
Field Label
Field Name
Data Type
Description
PCH__Description__c
Long Text Area(32768)
External ID
PCH__External_ID__c
Text(255) (External ID) (Unique Case Insensitive)
Group Long Name
PCH__Group_Long_Name__c
Text(255)
Nane
Name
Text(80)
Sharing Code
PCH__Sharing_Code__c
Text(80)
Type
PCH__Type__c
Picklist
Custom Fields & Resources
The Pitcher Apps Managed Package extends few custom fields to the following standard SFDC objects as listed below:
Account
There are below fields and resources which has been extended to this package -
Fields and Relationship
Field Label
Field Name
Data Type
Account Group
PCH__Account_Group__c
Lookup(Account_Group2__c)
Custom Metadata Objects
Pitcher Apps Managed Package installs the following custom metadata objects listed below:
Allocation Component Filters
The Allocation Component Filters (Allocation_Component_Filters__mdt) custom metadata is used to determine the configurations for Allocation part of Lightning Builder
Fields and Relationship
Field Label
Field Name
Data Type
Allocation Field
Allocation_Field__c
Picklist
Builder Object Name
Builder_Object_Name__c
Text(255)
Where Clause
Where_Clause__c
Text(255)
Managed Metadata Records
Name
Field Values
-NA-
-NA-
Apex Managed Sharing Settings
The APEX Managed Sharing Settings (Apex_Managed_Sharing_Setting__mdt) custom metadata is used to determine the configurations for APEX sharing for certain objects. The package provides metadata records that automatically set up the custom objects that are part of this package. Other packages might add metadata records in case they want to make use of the APEX sharing process within this package.
Fields and Relationship
Field Label
Field Name
Data Type
Access Level
Access_Level__c
Picklist
Condition (Where Clause)
Condition_Where_Clause__c
Text(255)
Object API
Object_API__c
Text(255)
Sharing Lookup (Field API)
Sharing_Lookup_Field_API__c
Text(255)
Active
isActive__c
Checkbox
Full Sync: Last Modified
Full_Sync_Last_Modified__c
Picklist
Full Sync: Batch Size
Batch_Size__c
Number(18, 0)
Delta Sync: Date Filter
Delta_Sync_Date_Filter__c
Picklist
Delta Sync: Date Filter (Period)
Delta_Sync_Date_Filter_Period__c
Picklist
Managed Metadata Records
Name
Field Values
Tag
Active = false
Object API = PCH__Tag__c
Sharing Lookup (Field API) = PCH__Account__c
Full Sync: Last Modified = YESTERDAY
Full Sync: Batch Size = <Blank>
Delta Sync: Date Filter = CreatedDate
Delta Sync: Date Filter (Period) = LAST_30_MINS
Condition (Where Clause) = <Blank>
Access Level = <Blank>
Deep Clone Settings
This custom metadata Deep Clone Settings (Deep_Clone_Settings__mdt) helps configure the deep clone settings.
Fields and Relationship
Field Label
Field Name
Data Type
Parent Record Name Suffix
ParentRecordNameSuffix__c
Text(255)
Excluded Child Object API Names
ExcludedChildObjectAPINames__c
LongTextArea(131072)
Child Record Name Suffix
ChildRecordNameSuffix__c
Text(255)
Managed Metadata Records
Name
Field Values
pch__assortment__c
Child Record Name Suffix = <blank>
Excluded Child Object API Names = pch__assortment__c,pch__account_product__c
Parent Record Name Suffix = <blank>
pch__mission__c
Child Record Name Suffix = <blank>
Excluded Child Object API Names = pch__mission__c
Parent Record Name Suffix = <blank>
pch__promotion__c
Child Record Name Suffix = <blank>
Excluded Child Object API Names = pch__promotion__c
Parent Record Name Suffix = <blank>
pch__tag__c
Child Record Name Suffix = <blank>
Excluded Child Object API Names = pch__tag__c
Parent Record Name Suffix = <blank>
Mobile Sync Limit
This metadata Mobile Sync Limit (Mobile_Sync_Limit__mdt) is used to set limits on specific checkbox fields on transaction objects defined in the Mobile Sync Limit Object. You can set the maximum number of days after which transaction records will have the specified checkbox deselected. You can also set the type of the record to Transactions so the parent object will have only a specific number of the newest records with the specified checkbox set to true. The rest will get automatically deselected whenever the maximum specified is exceeded.
So far Apps Package does not have any metadata records for this custom metadata; however other packages, Engage, and Mission does have records for this custom metadata.
Mobile Sync Limit Object
This metadata Mobile Sync Limit Object (Mobile_Sync_Limit_Object__mdt) is used together with Mobile Sync Limit. See the Mobile Sync Limit section for more information. Here you only define transaction objects to which Mobile Sync Limit records are related.
Fields and Relationship
Field Label
Field Name
Data Type
Label
Label
Text(255)
Managed Metadata Records
So far Apps Package does not have any metadata records for this custom metadata; however other packages, Engage, and Mission does have records for this custom metadata.
Object Mapping
This Metadata Object Mapping (Obj_Mapping__mdt) Type helps in configuring source and destination objects for mapping.
Here are below fields it has -
Fields and Relationship
Field Label
Field Name
Data Type
Active
Active__c
Checkbox
Object Source
Object_Source__c
Text(255)
Object Destination
Object_Destination__c
Text(255)
Object Criteria Source
Object_Criteria_Source__c
TextArea
Sync Checkbox API Name (Source)
Sync_Checkbox_API_Name_Source__c
Checkbox
Sequence
Sequence__c
Number(18,0)
Managed Metadata Records
So far, Apps Package does not have any metadata records for this custom metadata; however other package does, like Mission and Instore.
Field Mapping
This Metadata Type Field Mapping (Field_Mapping__mdt) helps in configuring source and destination objects' fields for mapping
Here are below fields it has -
Fields and Relationship
Field Label
Field Name
Data Type
Active
isActive__c
Checkbox
Object Mapping
Obj_Mapping__c
Lookup
Field Source
Field_Source__c
Text(255)
Field Destination
Field_Destination__c
Text(255)
Managed Metadata Records
So far, Apps Package does not have any metadata records for this custom metadata; however other package does, like Mission and Instore.
Lightning Builders
This custom metadata Lightning Builders (Lightning_Builder__mdt) helps set up Lightning builder-related setup. This is the main object defining the builder. It lookups to the type to set for which object it should execute. The builder displayed can be configured as the fullscreen or modal component. Record types for which builder works can also be defined (see Record Types field help text for more info). Such configuration is used, for example, for PCH__Tag__c. Please note that the Actions checkboxes used on this object are deprecated and not used for config.
This custom metadata Lightning Builder Types (Lightning_Builder_Type__mdt) helps set up Lightning builder-related setup. In order to be able to assign a builder to the object, first need to create a record here and let the label be the same as the object you would like to have a builder override.
Fields and Relationship
Field Label
Field Name
Data Type
Label
Label
Text(255)
Managed Metadata Records
Name
Field Values
PCH__Tag__c
No custom field
Lightning Builder Items
This custom metadata Lightning Builder Items (Lightning_Builder_Item__mdt) helps set up Lightning builder-related setup. These records define each step of each builder. Use Lightning Builder record view to see what steps are configured for a specific builder -- see the related list. The steps are displayed in the builder according to the sequence.
Fields and Relationship
Field Label
Field Name
Data Type
Active
Active__c
Checkbox
Active Only When Field True
Active_Only_When_Field_True__c
Text(255)
Allow Multiple records per source record
Allow_multiple_records_per_source_record__c
Checkbox
Canvas App Developer Name
Canvas_App_Developer_Name__c
Text(255)
Controller Class
Controller_Class__c
Text(255)
Destination (Mapping Field)
Destination_Mapping_Field__c
Text(255)
Destination (Object)
Destination_Object__c
Text(255)
Lightning Builder
Lightning_Builder__c
Text(255)
Object API
Object_API__c
Text(255)
Page Layout (Name)
Page_Layout_Name__c
Text(255)
Sequence
Sequence__c
Number(18,0)
Show Clone Action
Show_Clone_Action__c
Checkbox
Show Delete Action
Show_Delete_Action__c
Checkbox
Source (Object)
Source_Object__c
Text(255)
Static Where Clause
Static_Where_Clause__c
Text(255)
Title
Title__c
Text(255)
Type
Type__c
Picklist
Managed Metadata Records
Name
Field Values
Tag Actions
Active = true
Canvas App Developer Name = <blank>
Canvas App Parameters = <blank>
Controller Class = EXT_TagBuilderActions
Destination Mapping Field = <blank>
Destination Object = <blank>
Lightning Builder = Tag_Builder
Object API = <blank>
Page Layout Name = <blank>
Sequence = 50.0
Show Clone Action = true
Show Delete Action = false
Source Object = <blank>
Title = Tag Actions
Type = Actions
Tag Allocation
Active = true
Canvas App Developer Name = <blank>
Canvas App Parameters = <blank>
Controller Class = <blank>
Destination Mapping Field = <blank>
Destination Object = <blank>
Lightning Builder = Tag_Builder
Object API = PCH__Allocation__c
Page Layout Name = <blank>
Sequence = 40.0
Show Clone Action = <blank>
Show Delete Action = <blank>
Source Object = <blank>
Title = Tag Allocation
Type = Allocation
Tag Details
Active = true
Canvas App Developer Name = <blank>
Canvas App Parameters = <blank>
Controller Class =<blank>
Destination Mapping Field = <blank>
Destination Object = <blank>
Lightning Builder = Tag_Builder
Object API = <blank>
Page Layout Name = PCH__Tag Builder Layout
Sequence = 10.0
Show Clone Action = <blank>
Show Delete Action = <blank>
Source Object = <blank>
Title = Tag Details
Type = Details
Tag Group Details
Active = true
Canvas App Developer Name = <blank>
Canvas App Parameters = <blank>
Controller Class =<blank>
Destination Mapping Field = <blank>
Destination Object = <blank>
Lightning Builder = Tag_Group_Builder
Object API = <blank>
Page Layout Name = PCH__Tag Group Builder Layout
Sequence = 10.0
Show Clone Action = <blank>
Show Delete Action = <blank>
Source Object = <blank>
Title = Tag Group Details
Type = Details
Lightning Builder Table Items
This custom metadata Lightning Builder Table Items (Lightning_Builder_Table_Item__mdt) helps set up Lightning builder-related setup. These records configure further each step. They are used to configure what columns are displayed, used as filters, or used in the mapping. See descriptions of step components for more details.
This custom metadata helps Lightning Builder Allocation Items (Lightning_Builder_Allocation_Item__mdt) set up Lightning builder-related setup. Used only for allocation component to configure which tabs are visible on it.
Fields and Relationship
Field Label
Field Name
Data Type
Active
Active__c
Checkbox
Lightning Builder Item
Lightning_Builder_Item__c
MetadataRelationship(Lightning_Builder_Item__mdt)
Sequence
Sequence__c
Number(18,0)
Tab
Tab__c
Picklist
Type
Type__c
Picklist
Managed Metadata Records
Name
Field Values
Tag Account Hierarchy
Active = true
Lightning Builder Item = Tag_Allocation
Sequence = 20.0
Tab = Account
Type = Hierarchy
Tag Account Single
Active = true
Lightning Builder Item = Tag_Allocation
Sequence = 10.0
Tab = Account
Type = Single
Tag Segment Attribute (Account)
Active = true
Lightning Builder Item = Tag_Allocation
Sequence = 50.0
Tab = Segment
Type = Attribute (Account)
Tag Segment Attribute (User)
Active = true
Lightning Builder Item = Tag_Allocation
Sequence = 60.0
Tab = Segment
Type = Attribute (User)
Tag Segment Tag
Active = true
Lightning Builder Item = Tag_Allocation
Sequence = 70.0
Tab = Segment
Type = Tag
Tag User Hierarchy
Active = true
Lightning Builder Item = Tag_Allocation
Sequence = 40.0
Tab = User
Type = Hierarchy
Tag User Single
Active = true
Lightning Builder Item = Tag_Allocation
Sequence = 30.0
Tab = User
Type = Single
Schedule Batch Job Setting
This custom metadata Schedule Batch Job Setting (Schedule_Batch_Job_Setting__mdt) helps in setting up the schedule of the batch jobs in Pitcher packages.
Fields and Relationship
Field Label
Field Name
Data Type
Batch Size
Batch_Size__c
Number(3,0)
Chunk Size
Chunk_Size__c
Number(4, 0)
Grouping (Field)
Grouping_Field__c
Text(255)
Grouping (Value)
Grouping_Value__c
Text(255)
Object (Child)
Object_Child__c
Text(255)
Object (Parent)
Object_Parent__c
Text(255)
Sequence
Sequence__c
Number(2,0)
Type
Type__c
Picklist
Managed Metadata Records
Name
Field Values
Assortment L1
Batch Size = 2.0
Chunk Size = 500.0
Grouping (Field) = PCH__Sharing_Code__c
Grouping (Value) = <blank>
Object (Child) = PCH__Allocation__c
Object (Parent) = PCH__Assortment__c
Sequence = 1.0
Type = Assortment L1
Assortment L2
Batch Size = 10.0
Chunk Size = 500.0
Grouping (Field) = PCH__Sharing_Code__c
Grouping (Value) = <blank>
Object (Child) = PCH__Assortment_Product__c
Object (Parent) = PCH__Assortment__c
Sequence = 1.0
Type = Assortment L2
Assortment L3
Batch Size = 10.0
Chunk Size = 500.0
Grouping (Field) = PCH__Sharing_Code__c
Grouping (Value) = <blank>
Object (Child) = PCH__Assortment_Product__c
Object (Parent) = PCH__Assortment__c
Sequence = 1.0
Type = Assortment L3
Execution
Batch Size = 100.0
Chunk Size = 100.0
Grouping (Field) = PCH__Sharing_Code__c
Grouping (Value) = <blank>
Object (Child) = <blank>
Object (Parent) = PCH__Mission__c
Sequence = 1.0
Type = Execution
Mission
Batch Size = 2.0
Chunk Size = 500.0
Grouping (Field) = PCH__Sharing_Code__c
Grouping (Value) = <blank>
Object (Child) = PCH__Allocation__c
Object (Parent) = PCH__Mission__c
Sequence = 1.0
Type = Mission
Promotion
Batch Size = 2.0
Chunk Size = 500.0
Grouping (Field) = PCH__Sharing_Code__c
Grouping (Value) = <blank>
Object (Child) = PCH__Allocation__c
Object (Parent) = PCH__Promotion__c
Sequence = 1.0
Type = Promotion
Tag
Batch Size = 2.0
Chunk Size = 500.0
Grouping (Field) = PCH__Sharing_Code__c
Grouping (Value) = <blank>
Object (Child) = PCH__Allocation__c
Object (Parent) = PCH__Tag__c
Sequence = 1.0
Type = Tag
Sharing Settings
This custom metadata Sharing Settings (Sharing_Settings__mdt) helps control the visibility of records on the mobile device.
Fields and Relationship
Field Label
Field Name
Data Type
Criteria
Criteria__c
TextArea
Object
Object__c
Text(255)
Sharing Code
Sharing_Code__c
Text(255)
Managed Metadata Records
So far, Apps and other Pitcher Packages do not have any metadata records for this custom metadata. The metadata records have to be added at the subscriber end directly.
Trigger Object Settings
This metadata Trigger Object Settings (Trigger_Object_Settings__mdt) is the first step for setting up the Trigger Action Framework for any object.
Fields and Relationship
Field Label
Field Name
Data Type
Bypass Execution
Bypass_Execution__c
Checkbox
Bypass Permission
Bypass_Permission__c
Text(255)
Class Name (Flow Input)
Class_Name_Flow_Input__c
Text(100)
Object
Object__c
Text(255)
Required Permission
Required_Permission__c
Text(255)
Managed Metadata Records
Name
Field Values
Location
Tag
Bypass Execution = false
Bypass Permission = <blank>
Class Name Flow Input = <blank>
Object = PCH__Tag__c
Required Permission = <blank>
Sentry Issue
Bypass Execution = FALSE
Bypass Permission = <blank>
Class Name Flow Input = <blank>
Object = PCH__Sentry_Issue__e
Required Permission = <blank>
So far Pitcher Apps Package have only above record(s)for this custom metadata. The metadata records can to be added at the subscriber end directly and/or other Pitcher Packages can also have the metadata records for respective objects.
Trigger Action
This custom metadata Trigger Action (Trigger_Action__mdt) helps set up Trigger Actions for Triggers.
Description = It copies the Sharing Records from parent Account record, after insert of Tag record
Flow Name = <blank>
Sequence = 1.0
Required Permission = <blank>
TA_Sentry_Issue_Trigger
After Delete = <blank>
After Insert = Sentry_Issue
After Undelete = <blank>
After Update = <blank>
Flow Recursion = FALSE
Class Name = TA_Sentry_Issue_Trigger
Before Delete = <blank>
Before Insert = <blank>
Before Update = <blank>
Bypass Execution = FALSE
Bypass Permission = <blank>
Description = Sentry Issue (after insert)
Flow Name = <blank>
Sequence = 10.0
Required Permission = <blank>
TA_Location_GUID
TA_Tag_GUID
So far, Pitcher Apps Package has only the above record(s)for this custom metadata. The metadata records can be added at the subscriber end directly, and/or other Pitcher Packages can also have the metadata records for respective objects.
Custom Settings
Pitcher Apps Custom Settings
The Apps Custom Settings (PCH__Apps_Custom_Settings__c) store general settings that the Apps package requires. The custom settings include the following fields:
Fields and Relationship
Field Label
Field Name
Data Type
Sentry: DSN
PCH__Sentry_DSN__c
Text(80)
Sentry: Debug
PCH__Sentry_Debug__c
Checkbox
Sentry: Environment Name
PCH__Sentry_Environment_Name__c
Text(80)
Sentry: Disable Issue Creation
PCH__Sentry_Disable_Issue_Creation__c
Checkbox
Sharing: Default Field
PCH__Sharing_Default_Field__c
Text(255)
Apex Sharing: Batch Size (Delta Sync)
PCH__Apex_Sharing_Batch_Size_Delta_Sync__c
Number(18, 0)
Extended Objects
This package extends the standard or custom objects from another package by adding new fields, layouts, web links or some other components.
Instance Sharing
There are below fields and resources which has been extended to this package -
Fields and Relationship
Field Label
Field Name
Data Type
Instance ID
Instance_ID_Zero__c
Number (18,0)
Instance Name
Instance_Name_Zero__c
Formula
Instance
Instance_Zero__c
Lookup(Instance)
Custom User Interface
These elements provide users with a customized (not available out of the box in Salesforce) experience.
Visualforce Pages
These are custom pages that are used in certain areas of the system to allow a user to execute custom logic.
Components
Name
Description
Deep Clone (VFP_DeepClone)
Page used for deep record cloning mechanism.
Aura Components
These are customized, reusable building blocks of the user interface.
Components
Name
Description
eventModalClose
Event sent whenever user clicks on close button of the modalWrapperAura component.
builderWrapper
Main component for displaying record builder flows. Displays either in fullscreen or modal set of steps allowing user to create new/edit records. Used to override default new/edit actions of the Salesforce objects.
modalWrapperAura
Component displaying modal window.
builderStepCanvasAura
Step that allows displaying canvas application as a part of the builder flow.
appsCanvasHolder
Wrapper for displaying canvas app in Lightning applications
Lightning Web Components
These are customized, reusable building blocks of the user interface (similar to Aura components but using newer technology).
Components
Name
Description
builderConfigValidator
Displayed in Lightning Builder Config Validator tab. Validates the MDT records that are part of Lightning Builders configuration.
builderMain
Currently unused. Main component of the builder. Since we need to display
builderProgressDisplay
Progress bar used in Lightning Builder to display current step and total number of steps.
builderStep
Universal component for displaying builder steps. Conditionally displays proper component depending on the type of builder step that needs to be currently displayed in the builder flow.
builderStepActions
Contains actions displayed at the end of the builder flow.
builderStepAllocation
Contains component used to add allocation records to the builder record.
builderStepCanvas
Unused. Once Salesforce allow hosting Canvas apps in LWC it will supersede builderStepCanvasAura
builderStepDetailsAddons
Provides additional form elements used on some of the builder types. Due to technical reasons it contains logic that is applicable for packages depending on Apps. For now it is applicable to the following builders:
Promotion Builder
Displays tactic popup that allows user to select multiple tactics that will be linked to the created/edited Promotion
Mission Builder

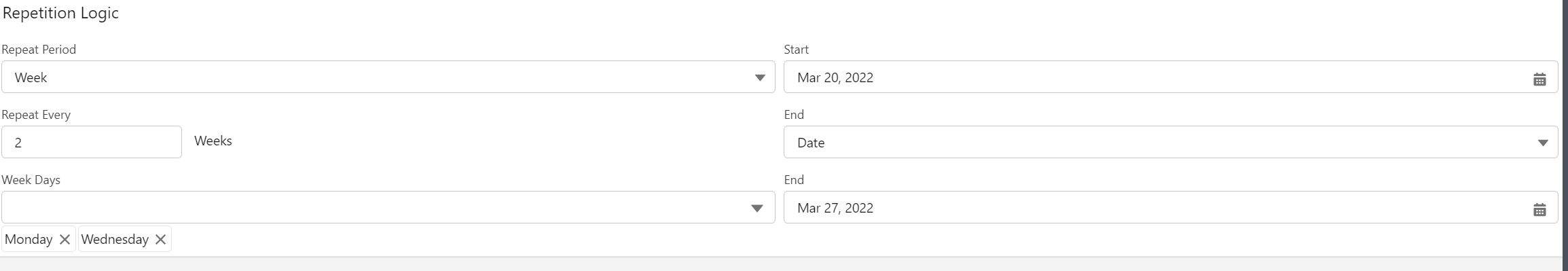

Displays repetition logic, allowing user to choose from different periods when the mission will be repeated. Depending on the selection of period, different inputs are displayed. For “Week” mode we can additionaly specify weekdays on which the mission will be executed. The Weekdays are coded as 1-Monday, 2-Tuesday, 3-Wednesday, etc…
builderStepDetailsBeta
Step of the builder displaying record edit form of the builder record.
builderStepSelectionDetailsBeta
Step of the builder for specyfying details of junction records related to the main builder object.
builderStepSelectionListBeta
Step of the builder allowing user to select multiple records from the filtered list that can be connected to the builder record on the next step (builderStepSelectionDetailsBeta component) via junction object. In case of edit, the records that have already been connected (junction object exist) are preselected.
datatableLookup
Used in datatablePlus. Allows displaying and modifying lookup fields on the records.
datatablePicklist
Used in datatablePlus. Allows displaying and modifying picklist fields of the records.
datatablePlus
Extension of standard datatable component. Adds new column types:
Picklist
Row selection button
datatablePlusPaginated
Extension of datatablePlus giving pagination features
datatableSelectButton
Used in datatablePlus. Displays button for selecting records. Provides better user experience and implementation than standard datatable’s checkboxes.
dateRangeInput
Universal date range input component for start and end date. It’s also been used in universalInput.
dateUtils
Javascript-only component containing utility functions related to the date/time handling.
dynamicAllocationComponentItems
Contains conditionally displayed tabs displayed in allocation step.
dynamicRelatedList
Displays related list with allocation records, displayed on builder’s allocation step.
filters
Universal component allowing displaying configurable filters on different components.
Universal component displaying lookup input. Works similar to the lookups displayed in standard Salesforce Lightning edit pages.
lookupContainer
Container for lookup component that simplifies using
modalWrapper
Universal component for displaying other components in modal
multipicklist
Universal component allowing displaying picklist with multiple selection. Options selected by user are displayed below the input as pills.
multipicklistOption
Part of multipicklist component. Displays single option displayed in the multipicklist’s selection box.
numberRangeInput
Universal number range input component for start and end date. It’s also been used in universalInput.
relatedList
Configurable component for easy displaying paginated, editable, filtered related lists.
relatedListDeletePopup
Modal confirming record removal for the dynamicRelatedList component, used in allocation step of the builder.
relatedListModal
Modal wrapper for dynamicRelatedList component, used in allocation step of the builder.
relatedListNewEditPopup
Modal for creation/editing of the records for the dynamicRelatedList component.
stringUtils
Utils for string manipulation in JS
universalForm
Universal component for displaying several universalInput components. Can be used instead of default lightning-edit-form when more customization is needed.
universalInput
Universal component for displaying configurable, polymorphic
utils
Javascript-only component containing utility functions reused by LWC components.
Pitcher Apps Managed Package installs two custom tabs.
Account Group - This tab allows user to view and modify Account Group records. Accessible from App Launcher in Salesforce.
Allocation - This tab appears when you access the Allocations app on Salesforce.
The Allocations tab
Tag - This is the tab that appears when you access the Tags app on Salesforce.

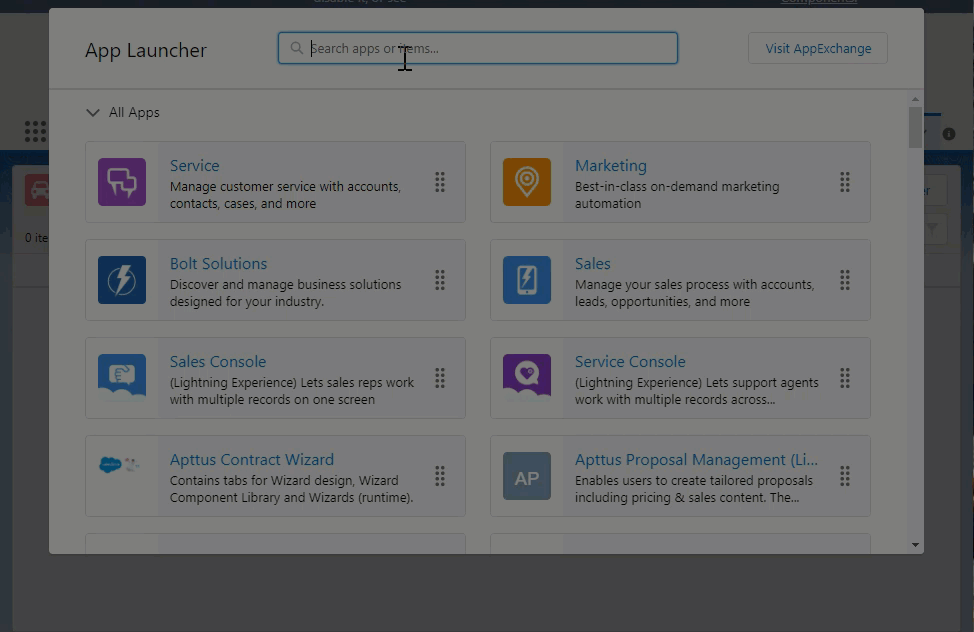

The Tags tab
Apex Classes
Pitcher Apps Package installs the following Apex Classes that are used for the proper functioning of the applications on the Pitcher platform:
SCH_AllocationProcessingBatchScheduler
CTL_LightningSelectionDetails
ITF_LightningBuilder_INT
Sentry_Client
Sentry_Environment
SYS_Constants
BLG_ApexSharing
Sentry_Log
Sentry_Context
Sentry_TestingController
BAT_ExecutionCreationBatchProcess
BAT_ExecutionCreationBatchProcessV2
CTL_LightningSelectionList
EXT_TagBuilderActions
FlowTriggerRecord
MetadataTriggerHandler
SYS_QueryUtils
SYS_SchemaUtils
SCH_ApexSharingManagerFullSync
SCH_ApexSharingManagerDeltaSync
BAT_CopyShareRecordsFullSync
BAT_CopyShareRecordsDeltaSync
BAT_ValidateApexSharing
Sentry_Dsn
Sentry_Event
Sentry_Exception
LWC_Ctrl_DynamicLayout
DynamicCMP_Utility
SYS_RelatedListController
EXT_TagBuilder_CTL
Sentry_Config
LWC_Ctrl_DynamicAllocationComponent
SCH_TagAllocationBatchScheduler
BAT_AllocationProcessingBatchProcess
Sentry_TestingMiddleware
SYS_AllocationUtility
Sentry
SCH_SiteAllocationBatchScheduler
CTL_Filters
CTL_LookupContainer
LookupSearchResult
PicklistWrapper
TriggerAction
TriggerActionFlow
SCH_ObjMappingManager
BAT_ObjMappingInsertion
TA_Sentry_Issue_Trigger
TA_GenerateGUID
Sentry_Issue_Handler
Sentry_LogMessage
CTL_BuilderConfigValidator
CTL_LightningBuilder
Sentry_ApiMock
Sentry_TestingThrower
Sentry_ExceptionFactory
SYS_CustomException
ITF_LightningBuilder_EXT
QUE_ExecuteDmlQueuableBatches
FilterUtils
BAT_DeleteBatchProcess
CTV_DeepClone
BLG_SObjectDeepClone
SYS_DeepCloneHandler
CTL_BuilderStepActions
CTL_BuilderStepDetails
CTL_BuilderStepSelectionDetails
CTL_BuilderStepSelectionList
ITF_BuilderStepActions
ITF_BuilderStepSelectionDetails
ITF_BuilderStepSelectionDetails2
SYS_Utility
SCB_ApexSharingManager (DEPRECATED)
BAT_CopyShareRecords (DEPRECATED)
Apex Triggers
Pitcher APPS Managed Package installs the following Apex Triggers as listed below -
Name
Object
Description
Sentry_Issue_Trigger
Sentry_Issue__e
Trigger to create Sentry logs for Pitcher APPS functionalities. Since managed packages logs can only be viewed by activating the Salesforce Feature but Sentry logs enable to create and monitor logs without enabling Salesforce feature for Managed Package logs.
LocationTrigger
Location__c
Generates External Id GUID
TagTrigger
Tag__c
Generates External Id GUID
Permission Sets
Pitcher Apps Managed Package installs the following two permission sets that are used for proper access on Pitcher application usage:
PITCHER-Apps Rep - This permission set is used to set permissions for sales representatives and account managers for front-end usage.
PITCHER-Apps Operations - This permission set is used to set permissions for business administrators for back-end (Salesforce) usage.
PITCHER-Account Groups Admin - This permission is used for administrating the Account Groups
PITCHER-Account Groups RO - This permission gives possibility to read Account Groups
